Insulated Wire Products
Five insulated wire series with multiple models and specifications. Triple independent insulation achieves reinforced insulation grade; full product line certified by international standards UL / VDE / SGS. Complete wire gauges and specifications available per individual product datasheets. Please contact us for details.
※ Filter is interface reference only; interactive filtering will be available on the official website launch.
Product Line

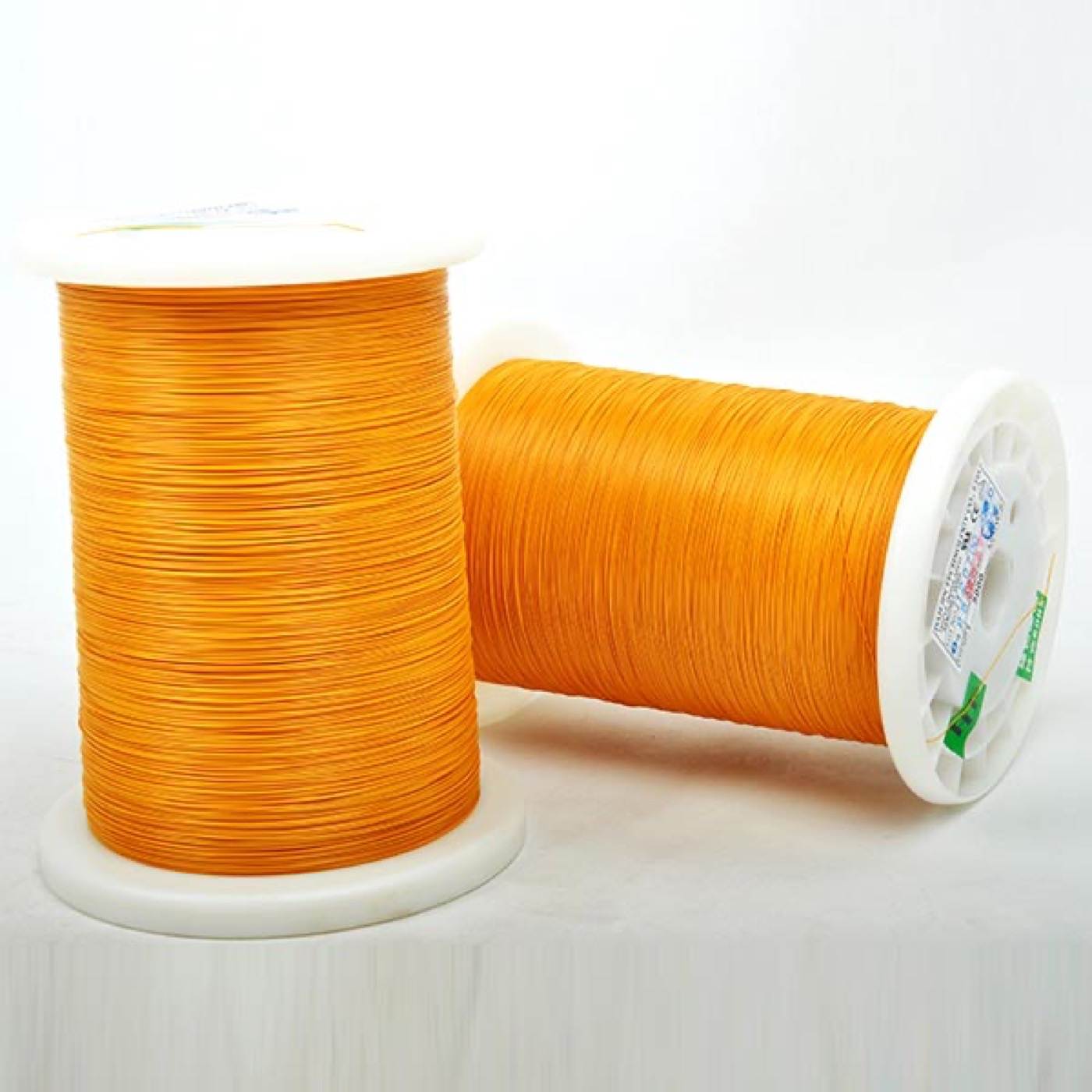

Total 5 ModelsTriple-insulated wire TLW-B
Featured TLW-BDAH JIN flagship triple-insulated wire (models TLW-B/TLW-BB). Triple independent insulation achieves reinforced insulation grade, eliminating creepage distance restrictions between windings; high-voltage resistant, can be soldered directly (no need to strip outer layer first). Approved by UL E236542, VDE 40008834, temperature rating Class B 130°C, conductor wire diameter 0.10–1.50 mm.
Dual-layer insulated wire
Dual-layer independent insulation winding wire (TLW-B2), belonging to the same approval series as flagship TLW-B; approved by UL E236542/VDE 40008834, specifications 0.10–1.00 mm, can be soldered directly.
Single-layer insulated wire
Single-layer insulated economical winding wire (TLW-B1), suitable for general electronic transformer applications. Approved by UL E236542, conductor wire diameter 0.10–0.20 mm.

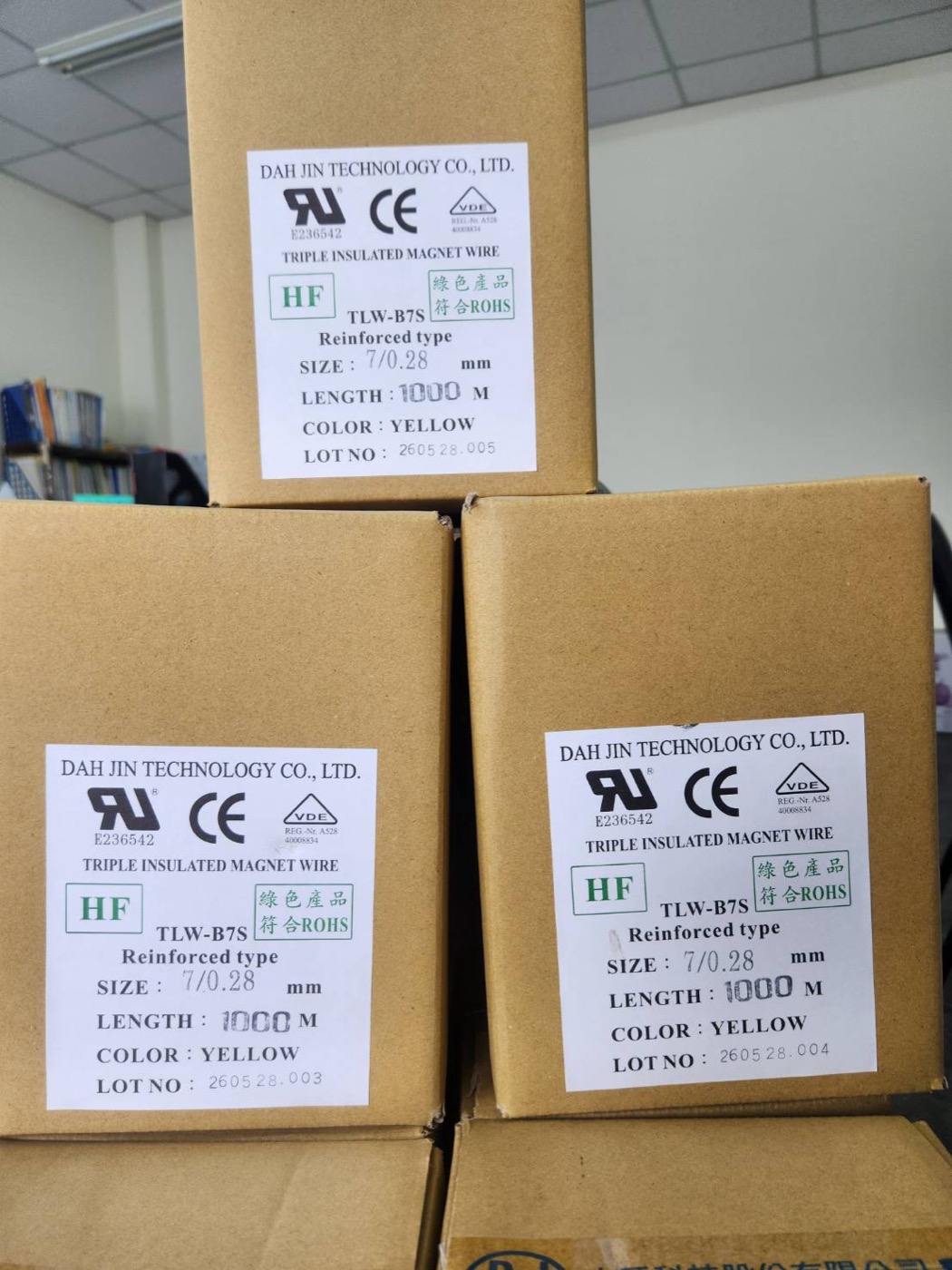

Triple-insulated wire – stranded type
Triple-insulated wire (TLW-B7S) composed of 7 enameled wires (conductors) twisted together in concentric circular stranding; belongs to triple-insulated wire series, can be soldered directly, approved by UL E236542/VDE 40008834, suitable for high-frequency power supplies reducing skin effect.
Class F triple-insulated wire
Class F triple-insulated wire (TLW-F): temperature rating Class F 155°C, specifications 0.10–1.00 mm, triple independent insulation achieves reinforced insulation grade, can be soldered directly, eliminating creepage distance restrictions between windings. Same approval series as TLW-B.
Tainan In-house Factory・Authentic Shipped Products
Unsure which model you need? Let AI Selection Assistant help you
Describe your application, wire gauge and target certification in one sentence; AI instantly recommends corresponding models and specifications, with one-click inquiry capability.
